With years’ experience in the firefighting industry, Ningbo Plent Machinery designs and manufactures equipment that meet the demands of the industry and help users to perform their job safer and more efficient.

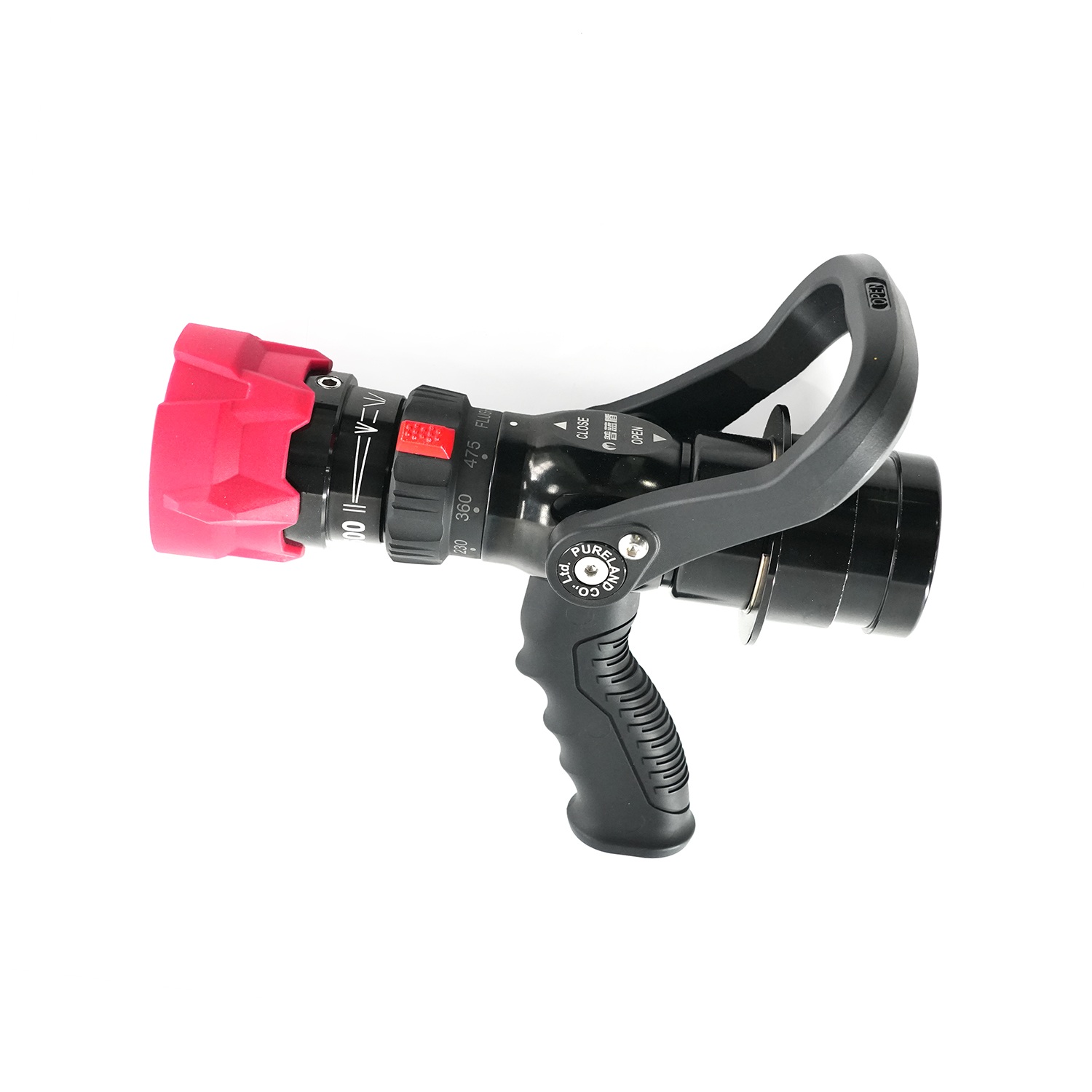

Plent Selectable Fire Nozzle is a combination fire nozzle of traditional constant-gallonage nozzle and adjustable-gallonage nozzle. And there’re mainly four models of Selectable Fire Nozzles with different flow available from PLENT Machinery. All our selectable fire nozzles are manufactured with highest quality anodized aluminum and durable protective surface to provide protection against corrosion.
|
Model# |
QLD6.0/1.0III-SX |
QLD5.0/4III-SX |
QLD6.0/8III-SX |
QLD7.0/15III-SX |
|
Flow Range |
15-30-45-60 LPM 4-8-12-16 GPM |
50-100-150-230 LPM 13 - 26 - 40-61 GPM |
115-230-360-475 LPM 30-61-95-125 GPM |
360-475-560-760-950 LPM 95-125-147-200-250 GPM |
|
Flush Function |
YES |
YES |
YES |
YES |
|
Max Reach |
22M |
35M |
40M |
55M |
|
Working Pressure |
6 Bar (85PSI) |
7 Bar (100PSI) |
7 Bar (100PSI) |
7 Bar (100PSI) |
|
Inlet Size |
1” (Recommend),1.5", 2", 2.5" |
1.5"(recommend), 2", 2.5" |
1.5"(recommend), 2", 2.5" |
1.5"，2", 2.5"(recommend） |
|
Max Fog Angle |
110° |
|||
|
Max Pressure |
25 Bar (360PSI) |
|||
|
Jet Pattern |
Jet or Fog Spray |
|||
|
Coupling |
Storz, NH, Inst, GOST, Machino |
|||
|
Product Material |
Hard Anodized Aluminum(Body) Injection Molded Nylon / ABS (Handle) |
|||
